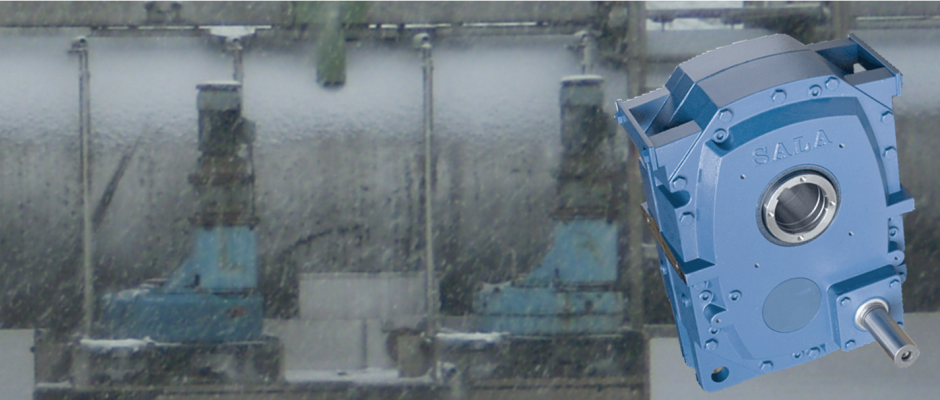

SALA shaftmount gearbox series J

The new SALA shaftmount gearbox series J has been designed for highest requirements and reliability. Originally designed for conveyors Benzlers has built the SALA gear in Sala, Sweden. Today the SALA Gears are known as relaible and long life gearbox especially in pulp and paper and wood industry. Its reliability today is supported from the optional KIBO system. The new KIBO hollowshaft is an option for fast and easy mounting and dismounting of SALA gears from series J.


> KIBO - hollowshaft for easy mounting and dismounting
> Compact dimensions allow easy replacement also for other manufactures
> Easy change of overall ratio with belt drive
> belt drive reduces shocks

Technical data:

Output torques: up to 57 800 Nm
Ratios: 5:1 / 15:1 / 20:1 / 25:1
KIBO hollow shaft can be adapted to various shaft diameters


Free input shaft, double sealrings, ATEX, SWIFT System, KIBO-Hollow shaft, Motormount, overload protection device, back stop possible
