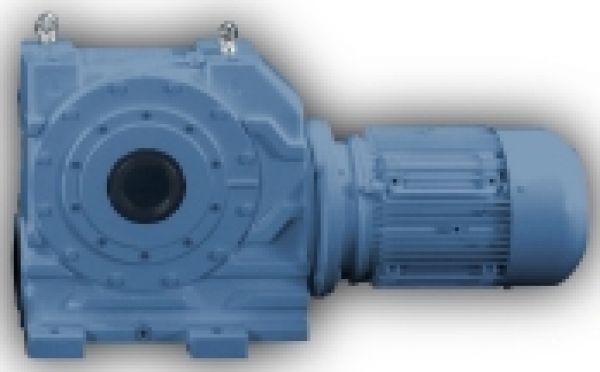

Helical worm gear series C


Helical worm gears are compact design geared motors using both advantages from helical and worm gears. The combination offers high ratios with increased efficiency, keeping the high load carrying capacity of a worm gear unit.

The Series C range is a top quality design and uses high quality materials and components. It is also manufactured and assembled using our modular swift kit units for minimizing inventory and increasing availability.

These modular gearboxes can be used with hollowshaft and torque arm but also come with outputshaft and feet. The motors are mounted with IEC and NEMA standard flanges and allow easy maintenance. Gearcases are in cast iron.


Advantages:

> IEC and NEMA Motoradapters for highest flexibility
> SWIFT inventory system for best availability
> Wide range of ratios with increased efficiency
> Compact design can replace existing drives from various brands

Technical Data:

Input power: 0,06 bis 45 kW
Output torque: 66 Nm to 10 000 Nm
Possible ratios: from 8 : 1 to 250 : 1 in double steps, combinations up to 60 000 : 1
Gear cases: 8 sizes starting from 20 mm output bore

Options:

IEC motor adaptor, free input shaft, NEMA motor adaptor, easy allows motors with brake, double sealring option, ATEX availability, SWIFT stocking system, KIBO hollow shaft, back stop flange for IEC motors, special output shaft availability...
